PRODUCT

RO Membrane

CSM is a filter brand developed by TORAY Advanced Materials and
it’s recognized for best quality & technical skills.

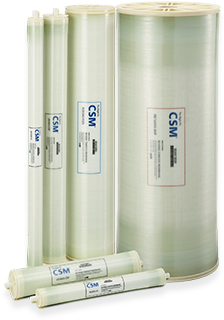

CSM®
CSM®

It is widely used for brackish water desalination.
CSM brackish water RO membrane is especially effective when the feed water is within 10,000 ppm of concentration.
Because of its high performance rate and chemical resistance, it can be used for a variety of purposes.
It is used in drinking water, industrial water, pharmaceutical water, waste water treatment and concentration of food and/or medicine.

Specifications

Model Flow Rate (GPD,m³/d) Rejection Diameter Test Condition Data Sheet
RE8040-BE34 11,000 (41.6) 99.7 8.0 / 40 40’’ BW Standard Download
RE8040-BE* 11,000 (41.6) 99.7 8.0 / 40 40’’ BW Standard Download
RE8040-BE440* 12,000 (45.4) 99.7 8.0 / 40 40’’ BW Standard Download
RE4040-BE* 2,400 (9.1) 99.7 8.0 / 40 40’’ BW Standard Download
RE2540-BE* 1,000 (3.8) 99.5 2.5 / 40 40’’ BW Standard Download
RE4021-BE 1,200 (4.5) 99.5 4.0 / 21 40’’ BW Standard Download
* 40’’ BW Standard test conditions : NaCI 2,000 mg/L, Pressure 225 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%

Using Reverse Osmosis Membrane shows excellent performance compare to other desalination processes in terms of performance, economy, and maintenance.
Nevertheless, the energy cost of driving is a significant part of the overall maintenance cost, and we are continuing to improve it.

Specifications

Model Flow Rate (GPD,m³/d) Rejection Diameter Test Condition Data Sheet
RE8040-BLF440 12,650 (47.9) 99.2 8.0 / 40 40’’ LP High Flux Download
RE8040-BLF* 11,500 (43.5) 99.2 8.0 / 40 40’’ LP High Flux Download
RE8040-BLR440* 11,000 (41.6) 99.6 8.0 / 40 40’’ LP Standard Download
RE8040-BLR* 10,000 (37.9) 99.6 8.0 / 40 40’’ LP Standard Download
RE8040-BLN440* 13,000 (49.2) 99.5 8.0 / 40 40’’ LP Standard Download
RE8040-BLN* 12,000 (45.4) 99.5 8.0 / 40 40’’ LP Standard Download
RE4040-BLF* 2,500 (9.5) 99.2 4.0 / 40 40’’ LP High Flux Download
RE4040-BLN* 2,600 (9.8) 99.4 4.0 / 40 40’’ LP Standard Download
RE4040-BLR* 2,100 (7.9) 99.6 4.0 / 40 40’’ LP Standard Download
RE2540-BLR 740 (2.8) 99.4 2.5 / 40 40’’ LP Standard Download
RE2540-BLN 930 (3.5) 99.2 2.5 / 40 40’’ LP Standard Download
RE2540-BLF 930 (3.5) 99.2 2.5 / 40 40’’ LP High Flux Download
RE4021-BLR 1,000 (3.8) 99.4 4.0 / 21 21’’ LP Condition Download
RE4021-BLN 1,200 (4.5) 99.2 4.0 / 21 21’’ LP Standard Download
RE4021-BLF* 1,200 (4.5) 99.2 4.0 / 21 21’’ LP High Flux Download
  • * 40’’ LP High Flux test conditions : NaCI 500 mg/L, Pressure 100 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * 40’’ LP Standard test conditions : NaCI 1,500 mg/L, Pressure 150 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * 21’’ LP High Flux test conditions : NaCI 500 mg/L, Pressure 100 psig, Temperature 25℃, pH 6.5-7.0 Recovery 8%
  • * 21’’ LP Standard test conditions : NaCI 1,500 mg/L, Pressure 150 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * 21’’ LP Condition test conditions : NaCI 1,500 mg/L, Pressure 150 psig, Temperature 25℃, pH 6.5-7.0 Recovery 8%
  • * The stated data were obtained after 30 minutes of operation.

The most problematic part of using RO Membrane is their pollution.
In particular, when surface water or wastewater is used as a raw water, irreparable pollution often caused by high concentrations of organic matter.
The Fouling-resistant RO Membrane, which developed with the latest technology of CSM, greatly reduced this problem.

Hydrophilicity has improved, so hydrophobic materials (oil, organic matter) are less deposited, and the smooth surface of the membrane reduces particle deposition.
So, wastewater with high organic content can exhibit outstanding pollution resistance than existing products.

Specifications

Model Flow Rate (GPD,m³/d) Rejection Diameter Test Condition Data Sheet
RE8040-FLF 12,000 (45.4) 99.6 8.0 / 40 40’’ LP Standard Download
RE8040-FLF34 12,000 (45.4) 99.6 8.0 / 40 40’’ LP Standard Download
RE8040-FLF440 13,000 (49.2) 99.6 8.0 / 40 40’’ LP Standard Download
RE8040-FLR* 10,000 (37.9) 99.6 8.0 / 40 40’’ LP Standard Download
RE8040-FLR34 10,000 (37.9) 99.6 8.0 / 40 40’’ LP Standard Download
RE8040-FEn* 11,000 (41.6) 99.7 8.0 / 40 40’’ BW Standard Download
RE8040-FEn34 11,000 (41.6) 99.7 8.0 / 40 40’’ BW Standard Download
RE8040-FEn440* 12,000 (45.4) 99.7 8.0 / 40 40’’ BW Standard Download
RE4040-FLR 2,100 (7.9) 99.6 4.0 / 40 40’’ LP Standard Download
RE4040-FEn 2,400 (9.1) 99.7 4.0 / 40 40’’ BW Standard Download
RE2540-FEn 1,000 (3.8) 99.5 2.5 / 40 40’’ BW Standard Download
  • * 40’’ BW Standard test conditions : NaCI 2,000 mg/L, Pressure 225 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * 40’’ LP Standard test conditions : NaCI 1,500 mg/L, Pressure 150 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * The Stated data were obtained after 30 minutes of operation.

Water is one of the most essential element for sustaining human lives.
However, we are facing health risks due to exposure to microorganisms and various pollutants that may exist in the water which we drink.
CSM’s Residential Membrane removes 100% of the virus removal rate and 99% or more of removing chemical substances, so you can drink clean and safe water at home.

Specifications

Model Flow Rate (GPD,m³/d) Rejection Diameter Test Condition Data Sheet
RE3512-900 900 (3,407) 95 3.5 / 12 Household Standard at 80 psi, Download
RE3512-TK 600 (2,271) 95 3.5 / 12 40% Recovery Download
RE3012-800 800 (3,028) 96 3.0 / 12 Dry Integrity Test Download
RE3012-500 500 (1,893) 97 3.0 / 12 Household Standard at 80 psi, Download
RE2812-450 450 (1,703) 96 2.8 / 12 40% Recovery Download
RE2812-300* 350 (1,325) 97 2.8 / 12 Dry Integrity Test Download
RE2812-HR+* 300 (1,136) 99 2.8 / 12 Household Standard Download
RE2812-CE 220 (833) 97 2.8 / 12 Household Standard Download
RE2012-400* 400 (1,514) 96 2.0 / 12 Household Standard at 30% Recovery Download
RE2012-150 150 (567.8) 98 2.0 / 12 Household Standard Download
RE2012-100 110 (416) 98 2.0 / 12 Household Standard at 80 psi Download
RE2012-LPF 60 (227) 93 2.0 / 12 Household Standard Download
RE2012-LP* 50 (189) 93 2.0 / 12 Household Standard Download
RE1812-80* 100 (379) 98 1.8 / 12 Household LP Download
NE1812-70 90 (341) 40-70 (95%) 1.8 / 12 Household LP Download
RE1812-HR+* 80 (303) 99 1.8 / 12 Household Standard Download
RE1812-50* 70 (265) 98 1.8 / 12 NF Household Standard Download
RE1812-LP 30 (114) 93 1.8 / 12 Household Standard at 30% Recovery Download
RE1812-60* 80 (303) 98 1.8 / 12 Household Standard Download
RE1812-80* 80 (303) 98 1.8 / 10 Household Standard Download
  • * Household Standard test conditions : NaCI 200mg/L, Pressure 60 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * Household LP test conditions : NaCI 100 mg/L, Pressure 20 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * Dry Integrity test conditions : NaCI 200 mg/L, Pressure 60~80 psig, Temperature 25℃, pH 6.5-7.0 Recovery 30~40%
  • * NF Household Standard test conditions : MgSO4/NaCI 250 mg/L, Pressure 60 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * The stated data were obtained after 30 minutes of operation.

Nanofiltration Membrane can be selectively remove due to their different removal rates of monovalent and divalent ions which exist in water.
For applications, it includes recovery of special drugs such as developers and dyes, or expensive raw materials.
Also, it could be used for pretreatment purposes that greatly reduce the concentration of divalent ions in seawater desalination facilities and
remove some of the monovalent ions.

Specifications

Model Flow Rate (GPD,m³/d) Rejection Diameter Test Condition Data Sheet
NE8040-40* 12,000 (45.4) 99 20-40 NE Standard Download
NE8040-70* 9,000 (34.1) 99 30-70 NE Standard (MgSO4) Download
NE8040-90* 8,000 (30.3) 90-97 NE Standard Download
NE4040-40* 2,500 (9.5) 99 20-40 NE Standard Download
NE4040-70* 1,900 (7.2) 99 30-70 NE Standard Download
NE4040-90* 1,700 (6.4) 90-97 NE Standard (NaCI) Download
  • * NE Standard test conditions : NaCI 2,000 mg/L, Pressure 75 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * MgSO₄ rejection test conditions : MgSO4 2,000 mg/L, Pressure 75 psig, Temperature 25℃, pH 6.5-7.0 Recovery 15%
  • * The stated data were obtained after 30 minutes of operation.

Ultrafiltration Membrane can’t remove ions from the water, but it can remove tiny particles.
Usually, it can remove substances smaller than 0.01μm.
.For industrial use, it is used for manufactured ultrapure water polishing purposes and can be also used for residential use. [UF Industrial Elements]

Specifications

Model Flow Rate (GPD,m³/d) Rejection Diameter Test Condition Data Sheet
UE8040-ES10 8,000 (30.3) 10K 8.0 / 40 20 psi, DI Water Download
UE8040-PF 16,000 (60.6) 50-100K 8.0 / 40 20 psi, DI Water Download
