RO Membrane

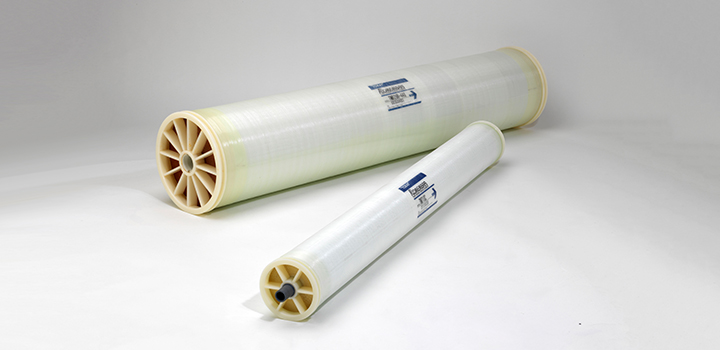

ROMEMBRA® is a reverse osmosis (RO) element
developed based on Toray's macromolecule technology.

ROMEMBRA®
ROMEMBRA®

RO Membranes from Toray Advanced Materials (4”, 8”, 16”) are available for industrial & commercial applications.

TM Series

Series Model Diameter Product Flow Rate Rejection Net Thickness Data Sheet
(inch) (㎥/d) (gpd) (%) (mil)
TM700D
(High Rejection)		 TM710D 4 9.8 2,600 99.8 31 Download
TM720D-400 8 41.6 11,000 99.8 34
TM720D-440 8 45.8 12,100 99.8 28
TMG(D)
(Low Pressure)		 TMG10D 4 10 2,650 99.7 34 Download
TMG20D-400 8 45.8 12,100 99.7 34
TMG20D-440 8 50.3 13,300 99.7 28
TMHA
(Ultra Low Pressure)		 TMH10A 4 9.1 2,400 99.3 31 Download
TMH20A-400C 8 41.6 11,000 99.3 34
TMH20A-440C 8 45.7 12,100 99.3 28

Certificates

Authentication Certificate
ANSI / NSF STANDARD 61 Download

TM Series

Series Model Diameter Product Flow Rate Rejection Net Thickness Data Sheet
(inch) (㎥/d) (gpd) (%) (mil)
TBW-HR
(Ultra Low Pressure,
High Neutral
Molecule Rejection)		 TBW-440HR 8 31 8,200 99.8 28 Download

SU Series *For Replacement Only

Series Model Diameter Product Flow Rate Rejection Net Thickness Data Sheet
(inch) (㎥/d) (gpd) (%) (mil)
TM700D
(High Rejection)		 SU-710T 4 6.5 6.5 99.4 31 Download
Download
SU-720TS 8 26 26 99.4 31
SUL-G10TS 4 5 5 99.5 31
SUL-G20TS 8 30 30 99.5 28
SUL-G20FTS 8 36 36 99.5 28
List Inquiry

Toray Advanced Materials has created 4”, 8”, and 16” Seawater Membrane that can treat seawater or brackish water at more than 10,000 ppm.
It can be used for large-scale of seawater desalination plants, ship’s water manufacturers, and treatment of trace water for mining reuse or discharge.

TM Series

Series Model Diameter Product Flow Rate Rejection Net Thickness Data Sheet
(inch) (㎥/d) (gpd) (%) (mil)
TM700D
(High Rejection)		 TM820M-400 8 26.5 7,000 99.8 34 Download
TM820M-440 8 29.2 7,700 99.8 28
TM800V
(Low Energy)		 TM810V 4 7.2 1,900 99.8 28 Download
TM820V-400 8 34.1 9,000 99.8 34
TM820V-440 8 37.5 9,900 99.8 28
TSW-LE
(Super Low Energy)
(*600psi)		 TSW-400LE 8 23.0* 6,100 99.60* 34 Download
TSW-440LE 8 25.3* 6,700 99.60* 28
TTM800K
(Highest Rejection)		 TM820K-400 8 21.9 5,800 99.86 34 Download
TM820K-440 8 24.2 6,400 99.86 28

Certificates

Authentication Certificate
ANSI / NSF STANDARD 61 Download
List Inquiry

Fouling Potential RO Membrane made by Toray Advanced Materials effectively handles water supply types with high contamination levels.
To improve chemical resistance, Toray’s membrane has combined with a durable “ D-Family” membrane which
provides stable performance even under challenging conditions.
It is suitable for wastewater treatment & water reuse.

TM Series

Series Model Diameter Product Flow Rate Rejection Net Thickness Data Sheet
(inch) (㎥/d) (gpd) (%) (mil)
TLF
(Ultra Low Pressure,
Low Fouling)		 TLF-400DG 4 43.5 11,500 99.5 34 Download
TMLD
(Low Fouling,
High Tolerance)		 TML10D 4 7.2 1,900 99.8 34 Download
TML20D-400 8 39.7 10,500 99.8 34

Certificates

Authentication Certificate
ANSI / NSF STANDARD 61 Download
List Inquiry
